The Volvo Penta MD6 and MD7 marine diesel engines are well-known for their durability and reliability. However, like any marine engine, they require regular maintenance to ensure longevity and optimal performance. This guide will cover everything you need to know, including oil changes, filter replacements, water pump repairs, impeller changes, and general upkeep.

1. Regular Maintenance Schedule

Maintaining Your Volvo Penta MD6 / MD7: A Complete Guide. To keep your MD6 or MD7 in top shape, follow a consistent maintenance routine:

  • Every 50 hours: Check oil level, coolant level, and inspect belts.
  • Every 100 hours: Change engine oil and filters, check impeller.
  • Every 200 hours: Replace impeller, clean cooling system, inspect fuel system.
  • Annually: Comprehensive inspection, including checking seals, fuel lines, and exhaust system.

2. Oil Change

Tools & Materials:

Steps:

  1. Run the engine for a few minutes to warm up the oil.
  2. Use an oil extractor pump to remove old oil from the dipstick tube.
  3. Replace the old oil filter with a new one.
  4. Refill the engine with fresh oil to the correct level.
  5. Check for leaks and run the engine to ensure proper circulation.
Volvo Penta VDS-4.5 Engine Oil 15W40

Volvo Penta VDS-4.5 Engine Oil 15W40

Size: 5L

Original price was: €79.50.Current price is: €75.50.
Shop now

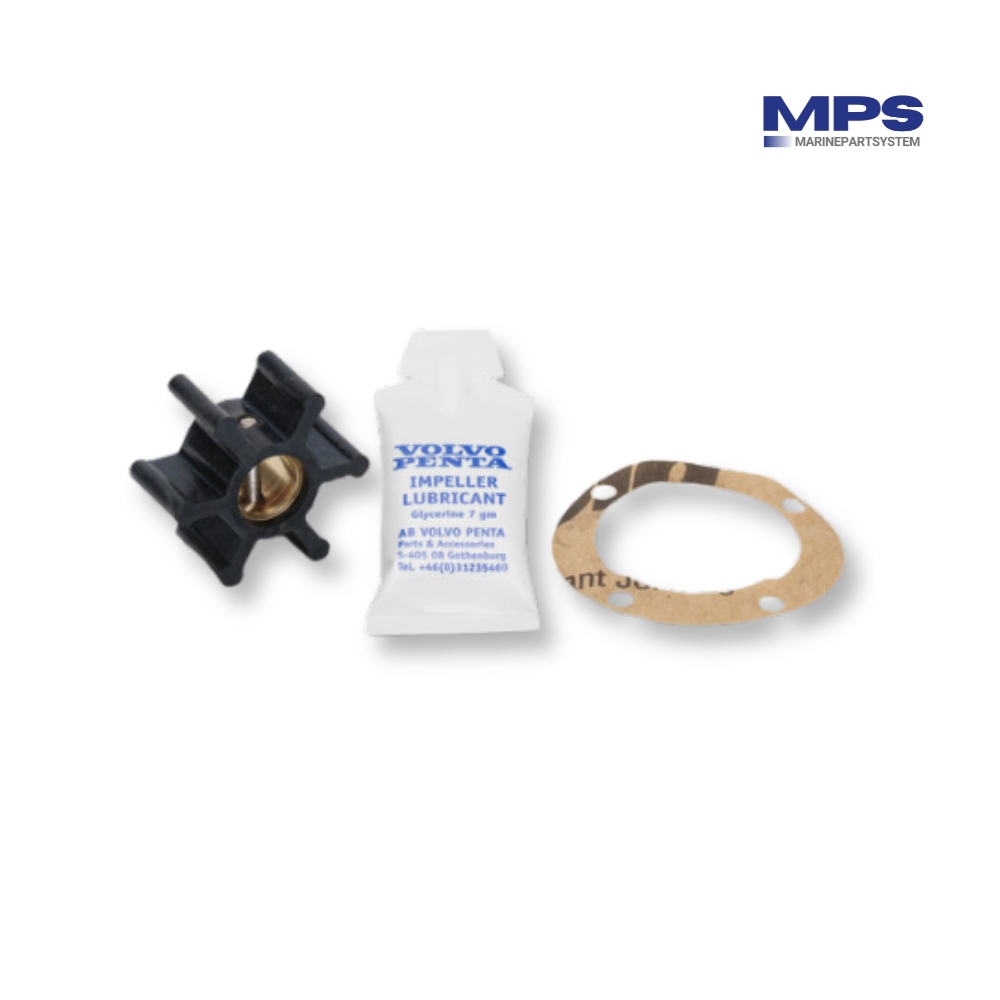

Impeller 21951342 (4 screws)

Impeller 21951342 (4 screws)

Shop now

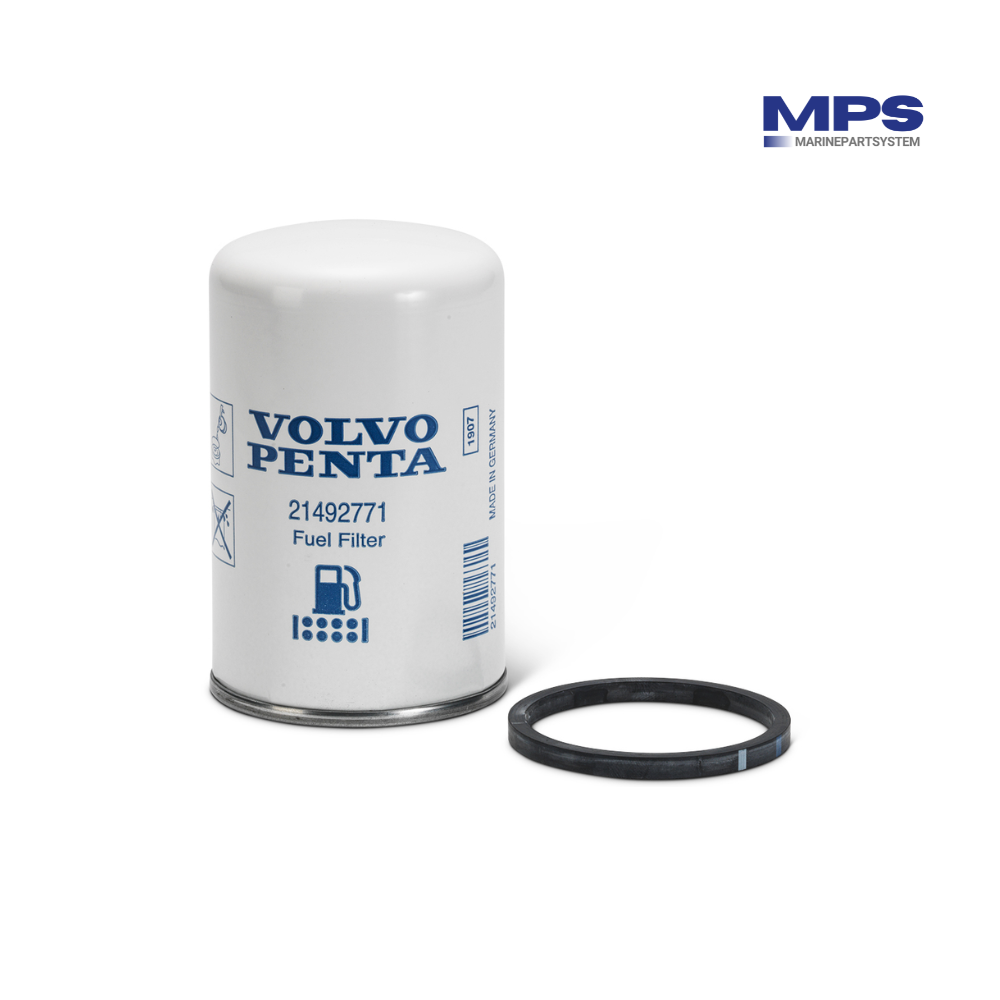

Fuel filter 21492771

Fuel filter 21492771

Shop now

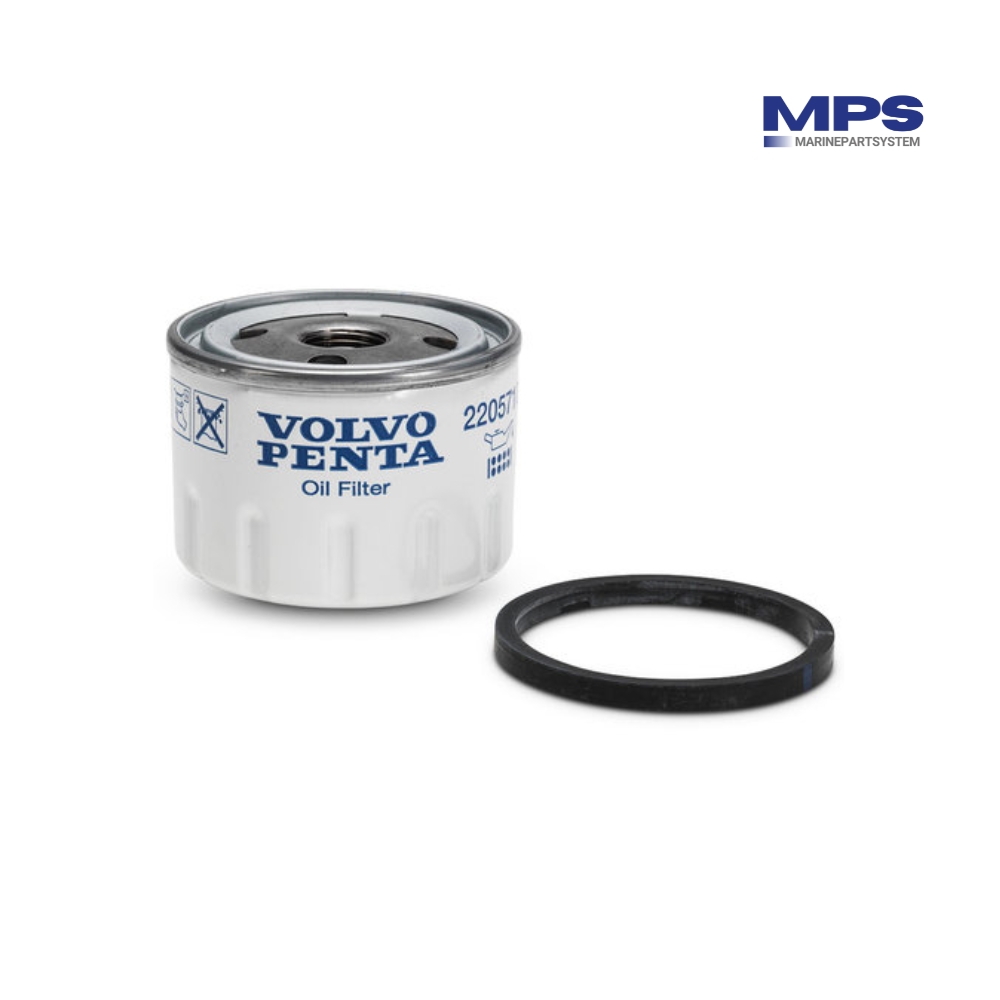

Oil filter 22057107

Oil filter 22057107

Shop now

3. Changing Fuel Filters

Dirty fuel filters can cause performance issues and stalling. The MD6 and MD7 have both a primary and secondary fuel filter.

Steps:

  1. Shut off the fuel supply.
  2. Remove the old primary fuel filter and replace it.
  3. Replace the secondary fuel filter on the engine.
  4. Prime the fuel system by pumping the manual lever on the fuel lift pump.
  5. Bleed air from the system by loosening the bleed screw while pumping fuel until air bubbles disappear.

4. Water Pump – Impeller Replacement

The raw water pump is critical for cooling the engine. A damaged impeller can cause overheating.

Steps:

  1. Close the seacock to prevent water from entering.
  2. Remove the water pump cover by loosening the screws.
  3. Pull out the old impeller using needle-nose pliers or an impeller puller.
  4. Apply a light coat of glycerin or dish soap to the new impeller.
  5. Insert the new impeller, ensuring the vanes bend in the correct direction.
  6. Reinstall the cover and reopen the seacock.
  7. Start the engine and check for water flow.

5. Cooling System Maintenance

Over time, scale and salt buildup can reduce cooling efficiency. To prevent overheating:

  • Flush the cooling system: Use a mix of fresh water and white vinegar.
  • Inspect hoses and clamps: Look for leaks or cracks.
  • Check the heat exchanger: Clean it if needed.

6. Belt & Alternator Check

A loose or worn alternator belt can affect charging and cooling.

Steps:

  1. Check belt tension by pressing down in the middle—there should be slight resistance.
  2. If loose, adjust the alternator bracket to tighten it.
  3. Inspect for cracks or fraying and replace if necessary.

7. Exhaust System Inspection

Blocked exhausts can lead to backpressure and overheating.

  • Check for soot deposits or leaks.
  • Ensure the water trap is clear and functional.
  • Replace exhaust hose if it shows signs of wear.

8. Winterization & Long-Term Storage

If storing your boat for the season:

  • Change the oil and filters.
  • Flush and drain the cooling system.
  • Fill the fuel tank and add stabilizer.
  • Disconnect the battery and store it in a cool, dry place.

Conclusion

Regular maintenance of your Volvo Penta MD6 or MD7 will ensure years of reliable service. Following this guide will help prevent breakdowns and costly repairs. Keep a maintenance log to track services, and always use high-quality replacement parts.

By staying on top of routine care, your marine engine will run smoothly, keeping your boat ready for the next adventure!

Frequently Asked Questions (FAQ)

My impeller pump is leaking. What should I do?

A leaking impeller pump often indicates worn seals. We offer replacement seal kits to fix this issue. If the pump housing is damaged, consider a complete pump replacement.

The shaft on my water pump is worn. Can it be repaired?

Yes! We offer a repair shaft kit that includes a new shaft and necessary components to restore proper function.

How often should I replace the impeller?

We recommend replacing the impeller every 200 hours or at least once a year to prevent failure at sea.

My fuel filter keeps clogging. What could be the issue?

Frequent clogging can be caused by contaminated fuel or algae buildup in the tank. Regularly draining the fuel tank and using a fuel additive can help prevent this issue.

What should I do if my engine overheats?

Check the raw water intake for blockages, inspect the impeller, and ensure the coolant levels are adequate. If overheating persists, inspect the heat exchanger (if you have one on your md6/7) for clogs.

Do you sell replacement parts for the Volvo Penta MD6/MD7?

Yes! We provide a variety of replacement parts, including impellers, seals, gaskets, filters, and complete pump replacements.
