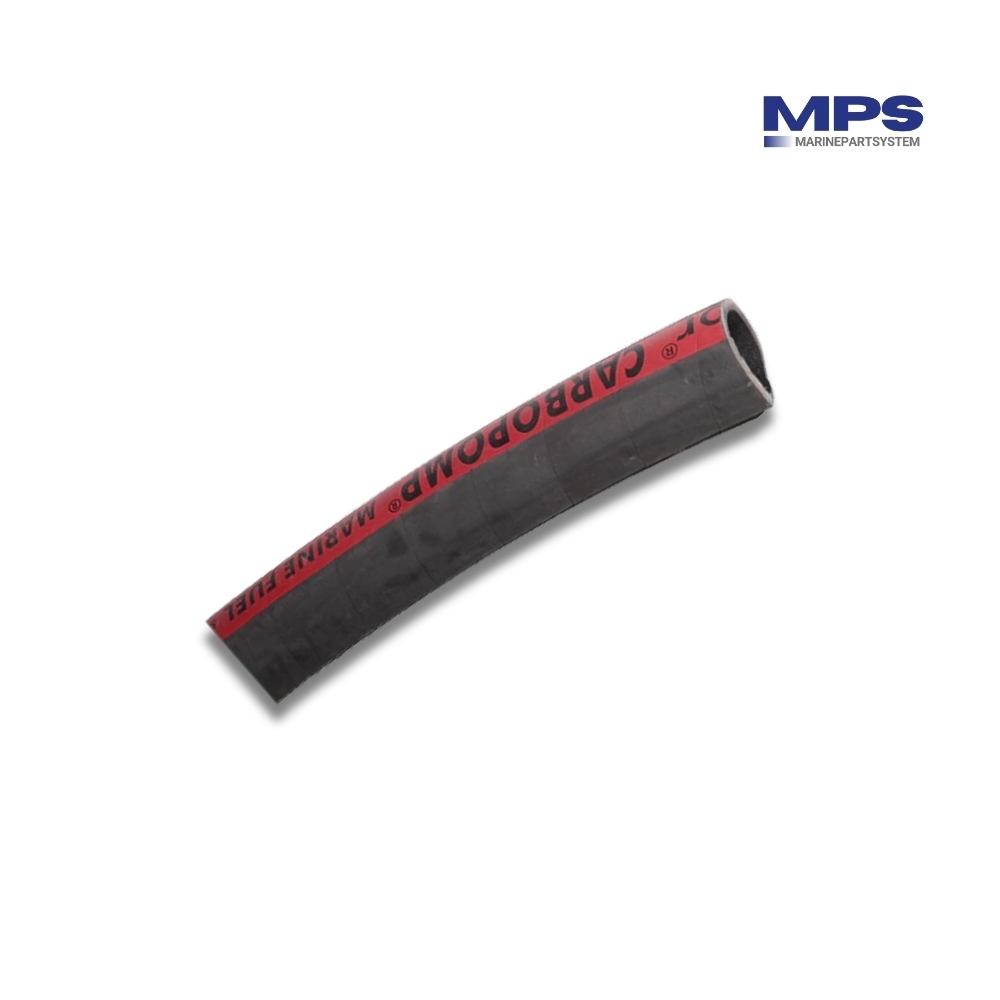

This 10 mm marine fuel hose is designed for safe fuel transfer on boats, yachts and small commercial vessels. It is suitable for inboard marine engines, fuel tanks, fuel filters, water separators and other onboard fuel line installations.
The hose is fire-resistant and certified according to ISO 7840 A1 and SAE J1527 USCG A1 , making it suitable for marine fuel systems where safety and compliance are important.
Sold per meter - supplied as one uncut length
This fuel hose is sold per meter . Select the number of meters you need as the product quantity.
Examples:
Quantity 1 = 1 meter
Quantity 5 = one 5 meter hose length
Quantity 10 = one 10 meter hose length
Quantity 40 = one full 40 meter roll
The hose is supplied as one continuous uncut length up to a maximum of 40 meters .
For example, if you order 10 meters, you receive one 10 meter piece , not 2 pieces of 5 meters.
Technical specifications
Inner diameter: 10 mm
Outer diameter: 18mm
Suitable for: 8 mm hose tails / nipples
Working pressure: 14 bar
Burst pressure: 30 bar
Bending radius: 45 mm
Temperature range: -20°C to +80°C
Certification: ISO 7840:2021 A1
Certification: SAE J1527 USCG A1
Approvals: RINA / Lloyd’s Register
Fuel compatibility: diesel, biodiesel and unleaded fuel
Maximum continuous length: 40 meters
Construction
Inner tube: smooth black NBR rubber, resistant to petroleum-based fuels
Reinforcement: high-strength synthetic textile reinforcement
Outer cover: CR/NBR rubber, resistant to abrasion, heat, fuel, ozone and marine conditions
Surface: smooth fabric-finished outer layer for easy installation
Safety: fire-resistant and self-extinguishing construction
Suitable for
This 8mm marine fuel hose can be used for:
Marine diesel engines
Inboard fuel systems
Boat fuel tank connections
Fuel filter connections
Water separator connections
Diesel and biodiesel fuel lines
Pleasure boats, yachts and small commercial vessels
Important fitment note
This hose has an 10 mm inner diameter and is suitable for 10 mm hose tails, nipples and fuel fittings . Always check the diameter of your old hose or fitting before ordering.
For a safe installation, use suitable marine-grade hose clamps and check all fuel connections after installation.
