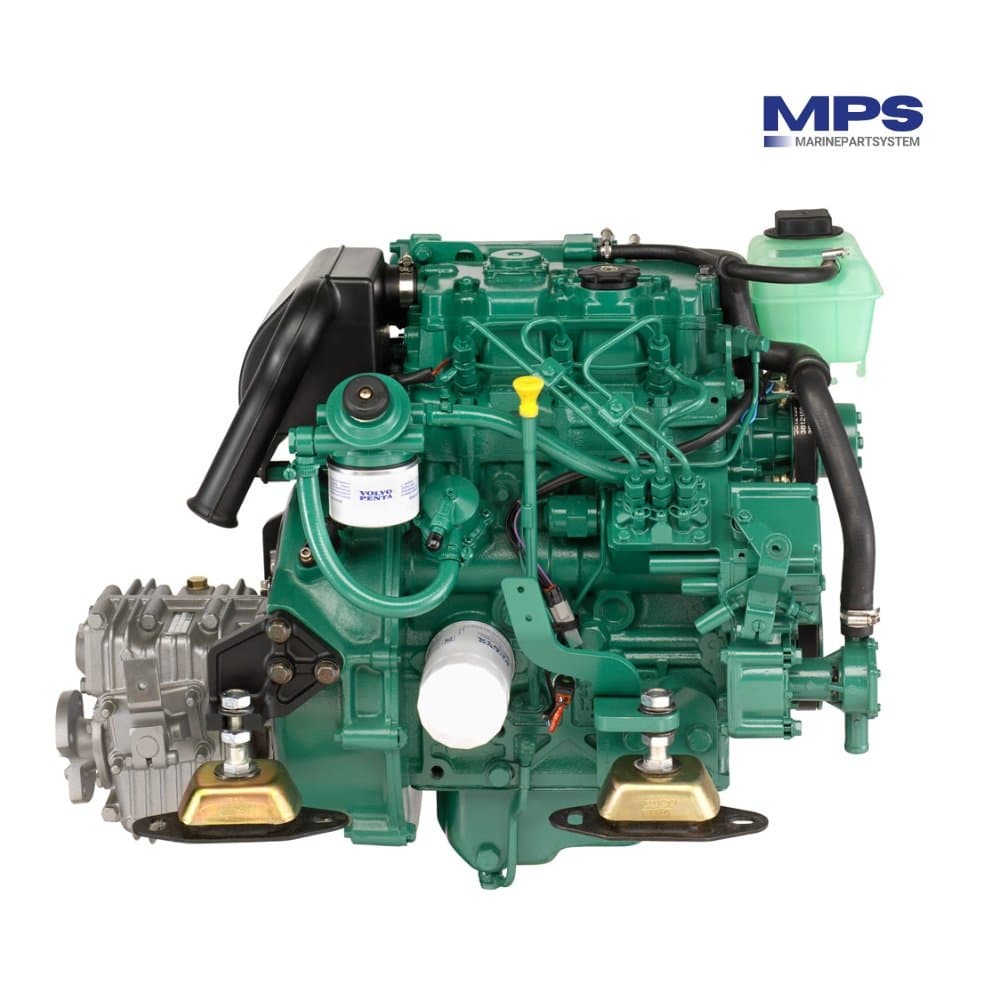

Volvo Penta D1 Series Maintenance Guide – D1-13 / D1-20 / D1-30
The Volvo Penta D1 Series marine diesel engines (D1-13, D1-20, D1-30) are built for performance and reliability — but like all marine engines, they require regular care to stay in top condition. This guide walks you through key maintenance tasks: oil changes, impeller replacements, fuel system checks, and more.
🛠️ Maintenance Schedule
- Every 50 hours: Check oil and coolant levels, inspect belts.
- Every 100 hours: Change engine oil, oil filter, and check the raw water system.
- Every 200 hours: Replace impeller, fuel filters, inspect hoses.
- Annually: Full inspection including belts, mounts, exhaust elbow, and battery.
🔧 How to Change the Engine Oil
- What You Need: 15W-40 marine oil, Volvo Penta oil filter, extractor pump, funnel, rags.
- Warm up the engine to thin the oil.
- Use an oil extractor to remove old oil via the dipstick.
- Replace the old oil filter with a genuine or OEM-quality filter.
- Refill the engine with fresh oil to the correct level.
- Run the engine and check for leaks.
⛽ Replacing Fuel Filters
The D1 series uses both a primary (water separator) and a secondary (engine-mounted) fuel filter.
- Shut off the fuel supply.
- Replace the primary fuel/water separator filter.
- Replace the secondary fuel filter on the engine.
- Prime the system using the manual pump.
- Bleed air via the bleed screw until fuel runs clear.
💧 Raw Water Impeller Service
A worn or damaged impeller can cause serious overheating issues.
- Close the seacock to stop water flow.
- Remove the pump cover and extract the impeller.
- Lubricate the new impeller with glycerin or dish soap.
- Insert the impeller with vanes facing the correct direction.
- Replace the cover, reopen the seacock, and start the engine to check flow.
❄️ Cooling System Maintenance
- Flush the system using white vinegar or a marine descaler.
- Inspect and replace worn hoses and clamps.
- Clean or service the heat exchanger.
🔋 Alternator Belt & Electrical Check
- Check belt tension — it should deflect slightly under pressure.
- Inspect for cracking, fraying, or squealing noises.
- Replace with a high-quality OEM belt if worn.
🌊 Exhaust System Inspection
- Inspect the exhaust elbow for soot or corrosion.
- Check the hose for wear, leaks, or blockage.
- Ensure the waterlock/muffler is free of obstructions.
🧊 Winterization Tips
- Change oil and filters before storage.
- Drain or flush the cooling system with antifreeze.
- Fill the fuel tank and add stabilizer.
- Disconnect and store the battery in a cool, dry place.
❓ Frequently Asked Questions
- Q: How often should I replace the impeller?
Every 200 hours or once a year — whichever comes first. - Q: My fuel filter keeps clogging — why?
This may indicate fuel tank contamination or algae. Consider cleaning the tank and using a biocide additive. - Q: My engine is overheating — what now?
Check the impeller, coolant level, raw water intake, and clean the heat exchanger if necessary. - Q: Do you sell D1 Series parts?
Yes — we stock impellers, filters, pump kits, gaskets, belts, and more. Shop now.
🛒 Featured Maintenance Kits for Volvo Penta D1 Series
Complete Service Kits for D1-13, D1-20, and D1-30 Engines
| Engine Model | Kit Includes | Link |
|---|---|---|
| Volvo Penta D1-13 / D1-20 | Oil filter, fuel filters, impeller, gaskets | View Kit → |
| Volvo Penta D1-30 | Oil filter, fuel filters, impeller, seals | View Kit → |
Save time and prevent breakdowns with these all-in-one OEM-quality service kits. Includes everything you need for routine maintenance on your Volvo Penta D1 engine.
