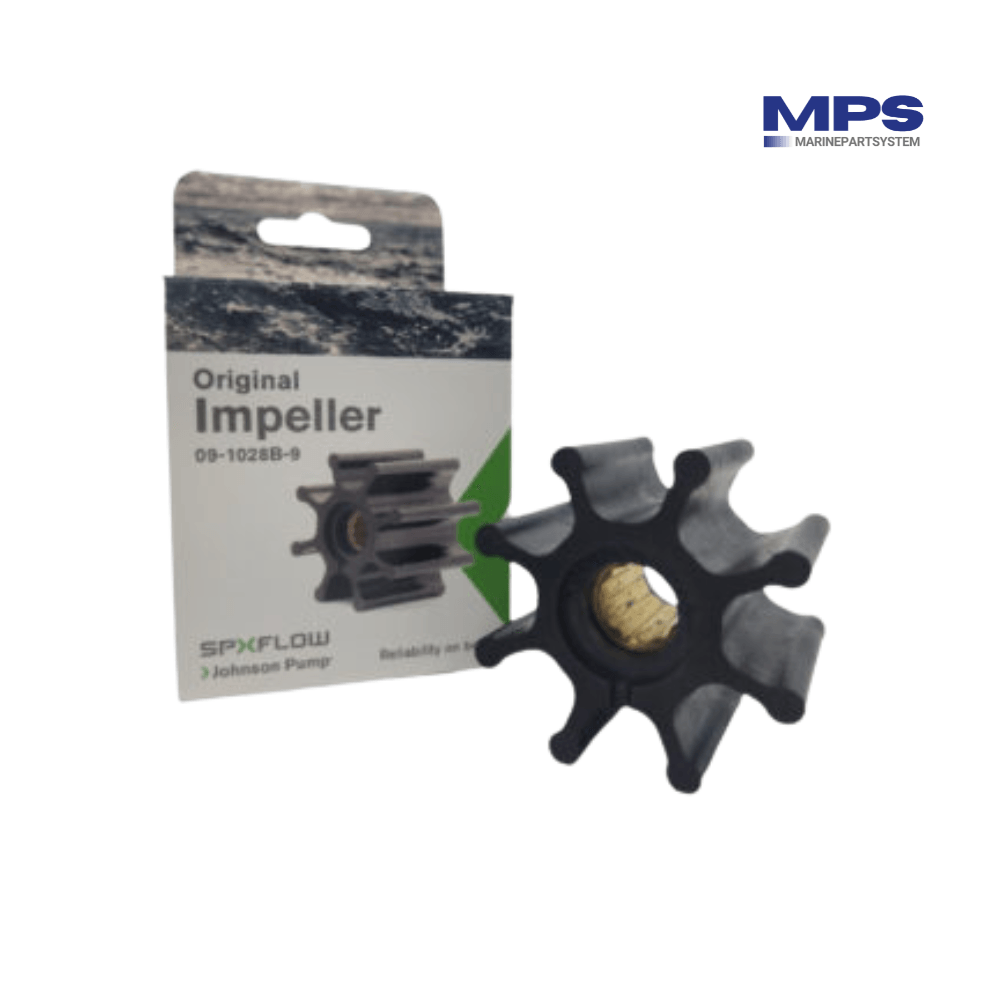

Johnson 09-1028B-9 Impeller Kit suitable for Johnson F7B seawater pumps used on various marine diesel engines, generator sets and auxiliary engines.
This impeller kit is commonly used on Volvo Penta, Yanmar, Perkins, Vetus, Nanni Diesel, Mercedes Marine, Solé Diesel, Cummins and Caterpillar engines fitted with Johnson F7B seawater pumps.
Specifications:
Pump Type: F7B
Material: Neoprene
Outer Diameter: 65 mm
Width: 50.2 mm
Shaft Diameter: 14.29 mm
Number of Blades: 8
Replaces Part Numbers:
Johnson: 09-1028B, 09-1028B-9
Jabsco: 920-0001
JMP: 7400-01
CEF: 500106
Vetus: IMP00301
Volvo Penta: 21951356, 3841697, 875593-6, 877061-2
Yanmar: 127610-42200
Perkins: 24880031
Cummins: 650607
Caterpillar: 3N1906
Detroit Diesel: 5193602
Sherwood: 18200
Solé Diesel: 34711008
Kashiyama: SP-70
Renault Couach: RC320D
Commonly used on the following engine models and applications:
Volvo Penta: AQ30, AQ31, AQD32, AQ40, AQ41, AQD70B, AQD70C, AQD70D, KAD32, KAD42A, KAD42B, KAD43, KAD44, KAD300, KAMD42A, KAMD42B, KAMD43, KAMD44, KAMD300, TMD30, TMD31, TAMD30, TAMD31, TMD40, TAMD40, TAMD41, TAMD42, TAMD70B, TAMD70C, TAMD70D, TAMD70E, THAMD70B, THAMD70C, D4-180, D4-225, D4-260, D4-300
Yanmar: 4CH-DT, 4LH-DTE, 4LH-DTZ, 4LH-HT, 4LH-HTE, 4LH-HTZ, 4LH-HTZAY, 4LH-ST, 4LH-STE, 4LH-STZ, 4LH-STZAY, 4LH-TE, 4LH-UT, 4LH-UTZ, 4LH-UTZAY, 4LHA-DTE, 4LHA-DTP, 4LHA-DTZE, 4LHA-DTZP, 4LHA-HTE, 4LHA-HTP, 4LHA-HTZE, 4LHA-HTZP, 4LHA-STE, 4LHA-STP, 4LHA-STZE, 4LHA-STZP, 4LV Series, N3L Series
Vetus: DT43, DTA43, DT44, DTA44, DT64, DTA64, DT66, DTA66, DT67, DTA67, P4.25
Perkins: 6.305, 6.354, 6.3540, 6.3543, 6HD135, 6HD150, 510 V8
Cummins: Various Cummins marine applications fitted with Johnson F7B pumps
Caterpillar: 3116, 3126
Solé Diesel: SF15, SF18, SM120
Mercedes Marine: OM314, OM352, OM355, OM360, OM401, OM402, OM616, OM617
Nanni Diesel: 4.220HE, 4.230, 4.240, 4.380, 4.380TDI, 4.390TDI, 4.440, 5.250TDI, 5.280HE, 5.300T, 6.280, 6.280HE, 6.570, 6.570T, 6.660E, 6.660LE, N4.65, N4.80, N4.85, N4.115, N4.140, RC210D, T4.155, T4.165, T4.180, T4.200, T6.300, T6.420TDI
Contents:
Impeller
Gasket
O-Ring
Installation lubricant
Please verify the OEM part number, pump model and impeller dimensions before ordering. If you are unsure whether this impeller fits your engine or seawater pump, feel free to contact us with your engine model, serial number or existing part number.
