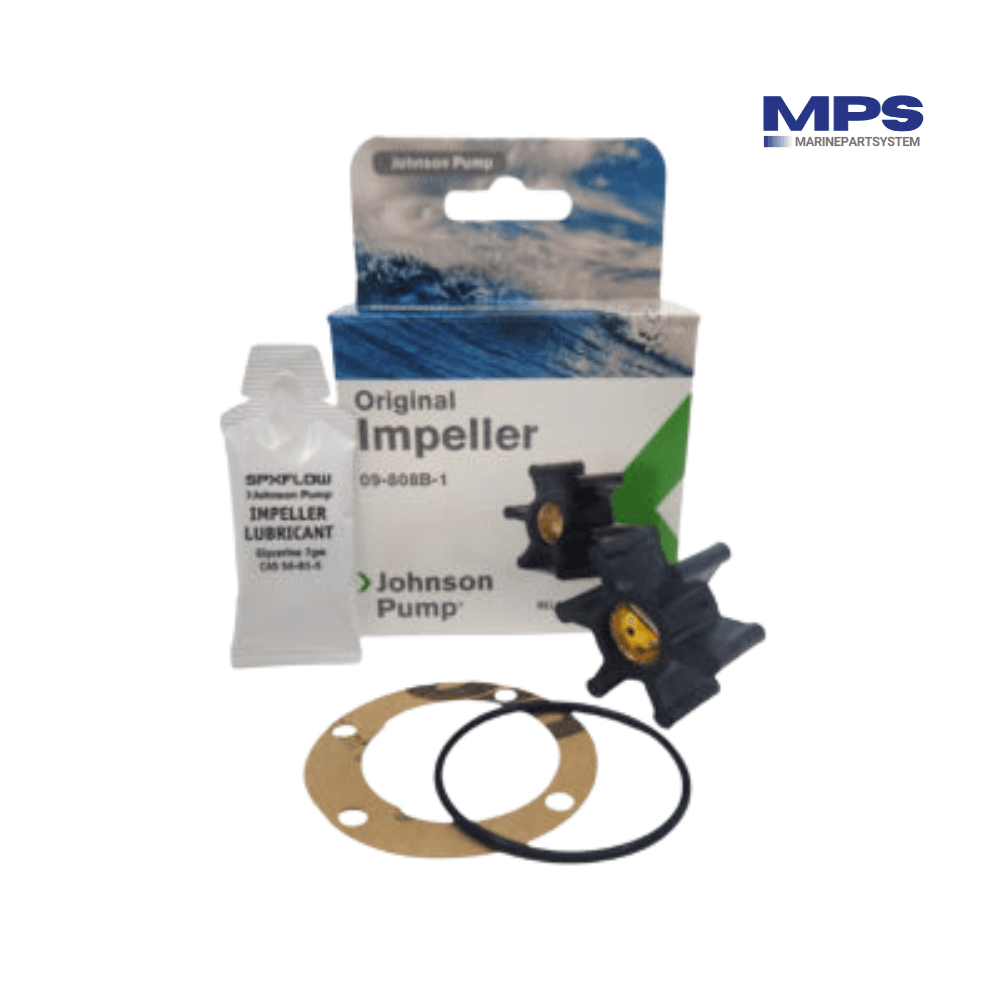

Johnson 09-806B-1 Impeller Kit for Johnson F35 / F35B seawater pumps used on various Volvo Penta, Yanmar, Perkins, Bukh and marine generator applications.
This high-quality neoprene impeller is commonly used on smaller marine diesel engines fitted with Johnson F35 and F35B raw water pumps. The kit includes the impeller, gaskets and installation lubricant for servicing and maintenance of your engine cooling system.
Specifications:
Pump Type: Johnson F35 / F35B
Material: Neoprene / MC97
Outer Diameter: 40 mm
Width: 19 mm
Shaft Diameter: 9.5 mm
Shaft Type: Pin Drive
Number of Blades: 6
Replaces Part Numbers:
Johnson: 09-806B, 09-806B-1
Volvo Penta: 3580029, 3586494, 875807, 876689
Yanmar: 104211-42070
Perkins: 24880272
Onan: 132-0859
Jabsco: 4528-0001, 4528-0001-P, 4528-0003-P
JMP: 7001-01K
Sierra: 18-3079
Vetus: IMP00501
Commonly used on the following engine models and applications:
Volvo Penta: AQ2B, AQD2B, AQD21A, AQD21B, MB10A, MD1, MD1A, MD1B, MD2, MD2B, MD6, MD6A, MD6B, MD7A, MD7B, MD21A, MD21B, MD22A, MD22L-A, MD22L-B, MD2010, MD2010A, MD2010B, MD2010C, MD2010D, MD2020, MD2020A, MD2020B, MD2020C, MD2020D, MD2030 (early F35 pump versions)
Yanmar: 2GM, 2GM20, 2QM15, 3GM, 3GM30, 3QM30, SB8, SB12, YSB8, YSB12, YSE8, YSE12, YSM8, YSM12
Perkins: Prima M20, Perama M20
Bukh: DV10M, DV20M
Farymann: K30M, DS Series, ES Series, GS Series
Onan: Various marine generator applications fitted with Johnson F35 / F35B pumps
Includes:
Impeller
Gaskets
Installation lubricant
Please verify the OEM part number, seawater pump type and impeller dimensions before ordering. Some engines were supplied with different seawater pump versions depending on production year and serial number. If you are unsure whether this impeller fits your engine, feel free to contact us with your engine model, serial number or existing impeller part number.
