Johnson 09-808B-1 Impeller Kit for Johnson F35 / F35B seawater pumps used on various Volvo Penta, Bukh, Farymann, Nanni Diesel, Perkins, Lombardini, Ruggerini, Mercedes Marine and Fischer Panda marine engines and generator applications.

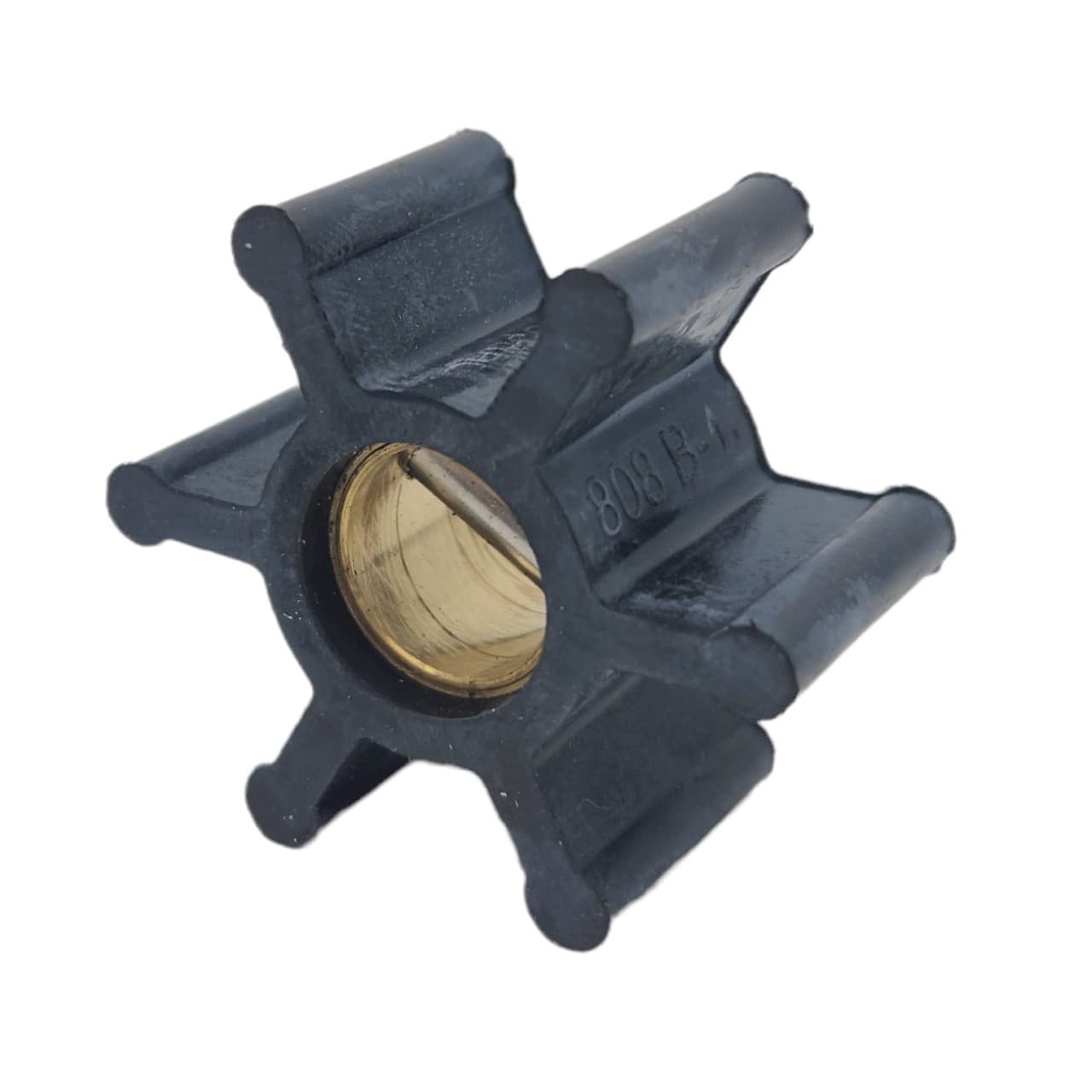

This high-quality MC97 / EPDM impeller is commonly used on smaller marine diesel engines and marine generators fitted with Johnson F35 and F35B raw water pumps. The kit includes the impeller, gaskets and installation lubricant for complete seawater pump service and maintenance.
Specifications:
Pump Type: Johnson F35 / F35B
Material: MC97 / EPDM
Outer Diameter: 40.0 mm
Inner Diameter: 12.0 mm
Width: 19.0 mm
Shaft Type: Pin Drive
Number of Blades: 6
Replaces Part Numbers:
Johnson: 09-808B, 09-808B-1
Jabsco: 22405-0001, 22405-0001-P, 4528-1001
Vetus: STM7180, IMP00601
Volvo Penta: 21951342, 3586496, 833995, 875583, 875583-7
Nanni Diesel: 970434013
Perkins: 24990288
Farymann: 002-171-026
GMC: 552764
Mase: 80161
Sierra: 18-3076
CEF: 500121
Commonly used on the following engine models and applications:
Volvo Penta: MD1, MD2, MD3, MD5, MD6, MD7, MD11, MD17, 2001, 2002, 2003, 2003B
Bukh: DV8, DV10, DV18, DV20, DV24, DV32
Farymann: A30, A30M, A40M, AL35, AL40, FK2, K30, K34, L30, L30M
Nanni Diesel: 2.40HE, 3.90, FK2, K34, L30
Ruggerini: CRD100, CRD951, MM150, MM191, PM105, PM105/2, RD100, RD100/2, RD951, RDM901, RM80, RM90
Fischer Panda: PMS3, PMS3.8, PMS4, PMS4.5, PMS4500, PMS5000, PMS14000
Lombardini: LDW401M
Mercedes Marine: OM321
Perkins: Various Perkins marine diesel applications fitted with Johnson F35 pumps
Mase Generators: Various Mase marine generator applications using impeller 80161

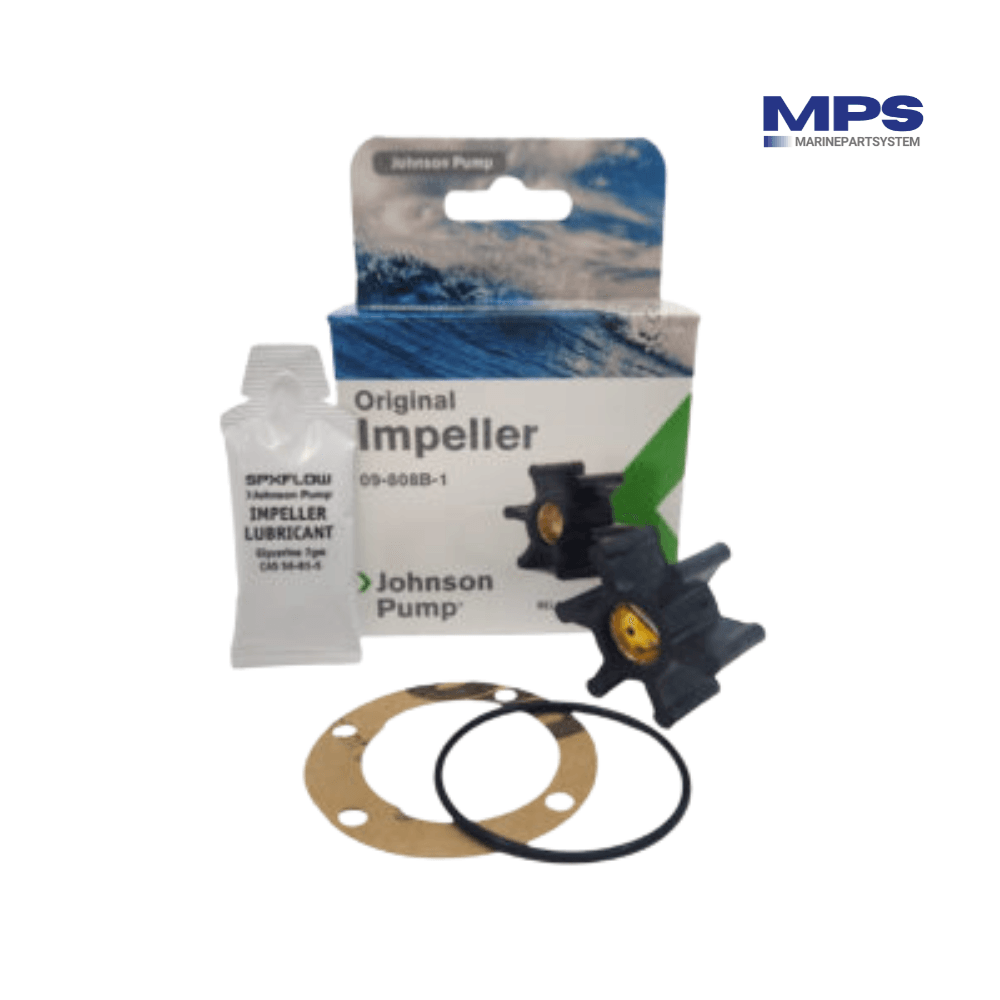

Includes:
Impeller
Gaskets
Installation lubricant
Please verify the OEM part number, seawater pump type and impeller dimensions before ordering. Marine engines can be fitted with different seawater pump versions depending on production year and serial number. If you are unsure whether this impeller fits your engine or pump, feel free to contact us with your engine model, serial number or existing impeller part number.
