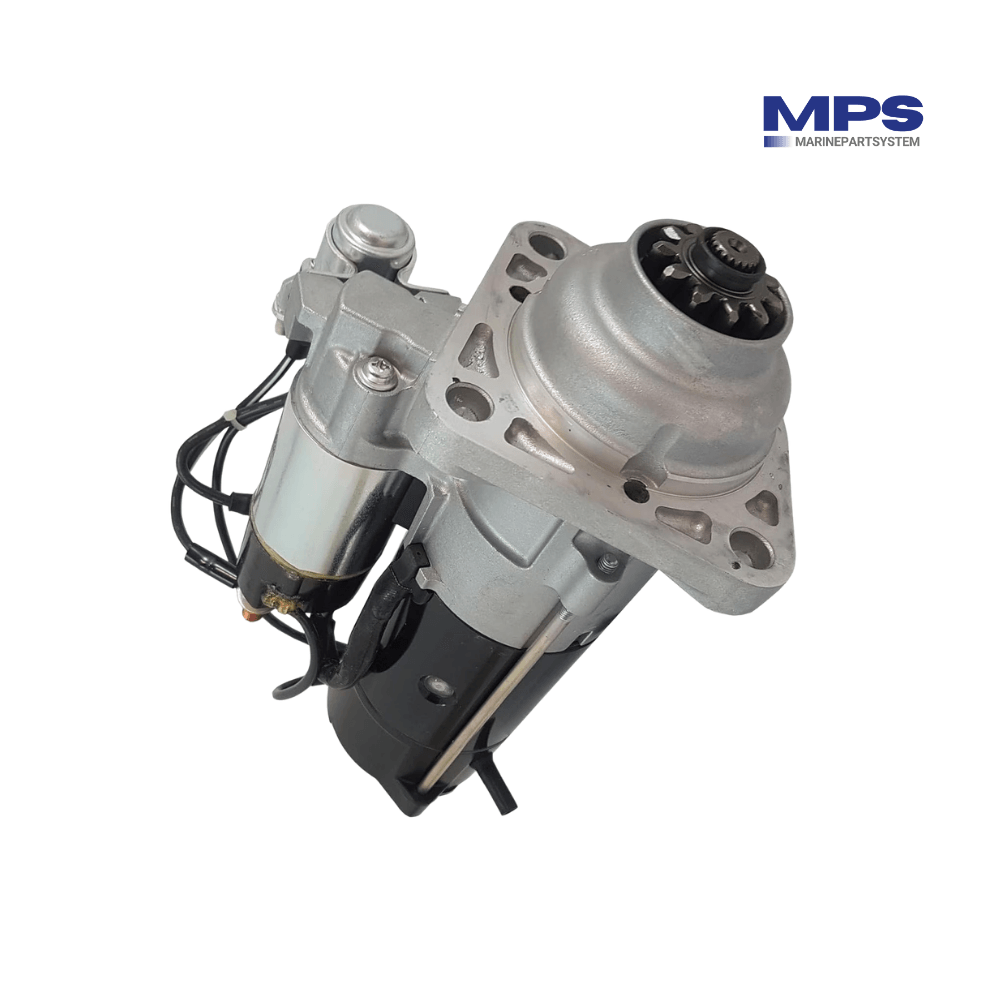

This 12V starter motor is suitable for several Volvo Penta D4 engines and replaces original part number 3594614 .
It has a power output of 3.6 kW, an 11-tooth pinion and three mounting holes. Several older Volvo Penta numbers were used for the same starter, so you may find a different number on the unit currently fitted to your engine.
Suitable for Volvo Penta engines
D4-180I-F, D4-225A-F, D4-225I-F, D4-260A-F, D4-260D-F, D4-260I-F, D4-300A-F, D4-300D-F, D4-300I-F
Replaces Volvo Penta part numbers
3588491, 3594614, 3594616, 3801296, 3803648, 3803938, 3841359
Specifications
Voltage: 12V
Power: 3.6 kW
Number of teeth: 11
Spigot diameter: 88 mm
B+ connection: M8
Mounting holes: 3
Mounting angle: +47.5°
Rotation: Clockwise
